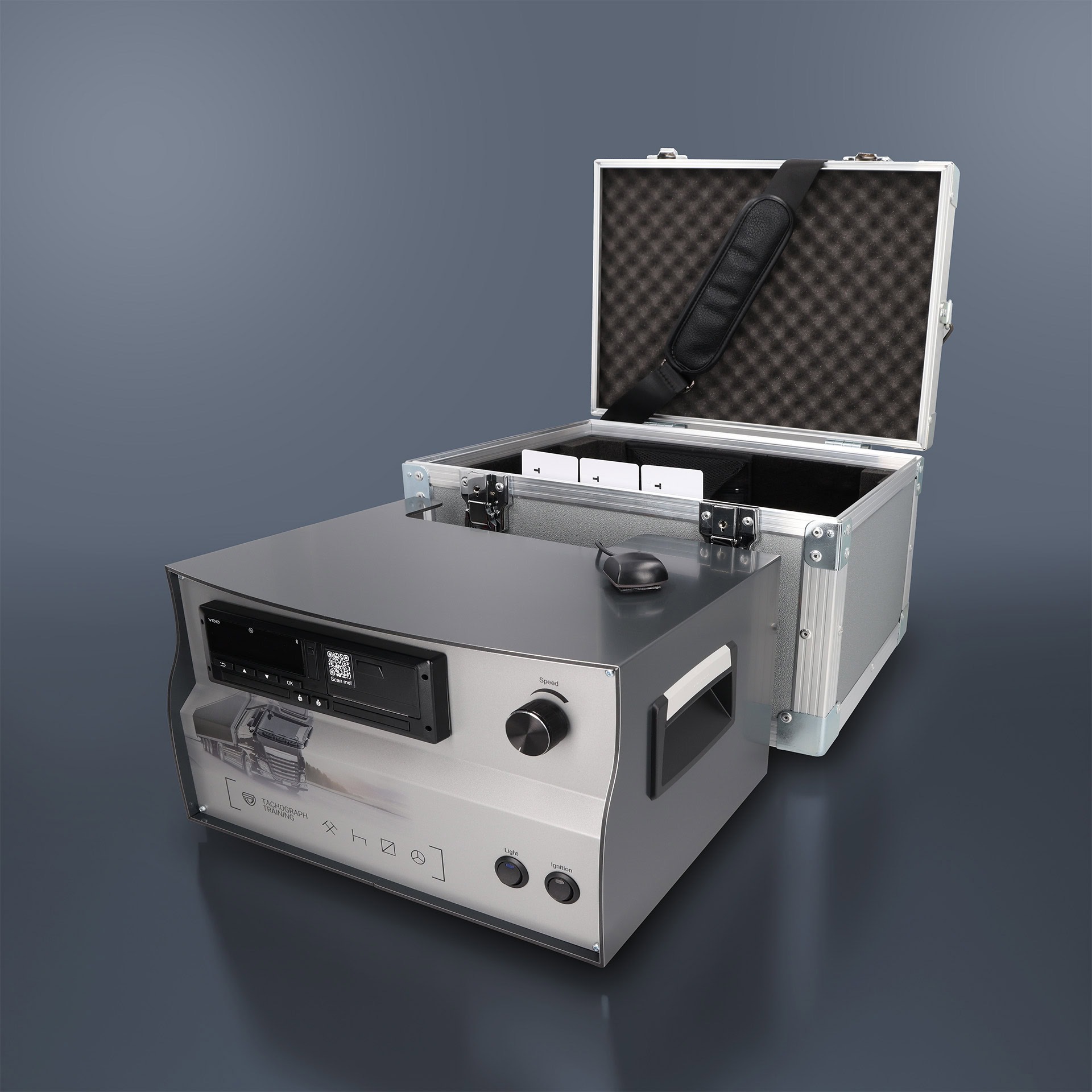

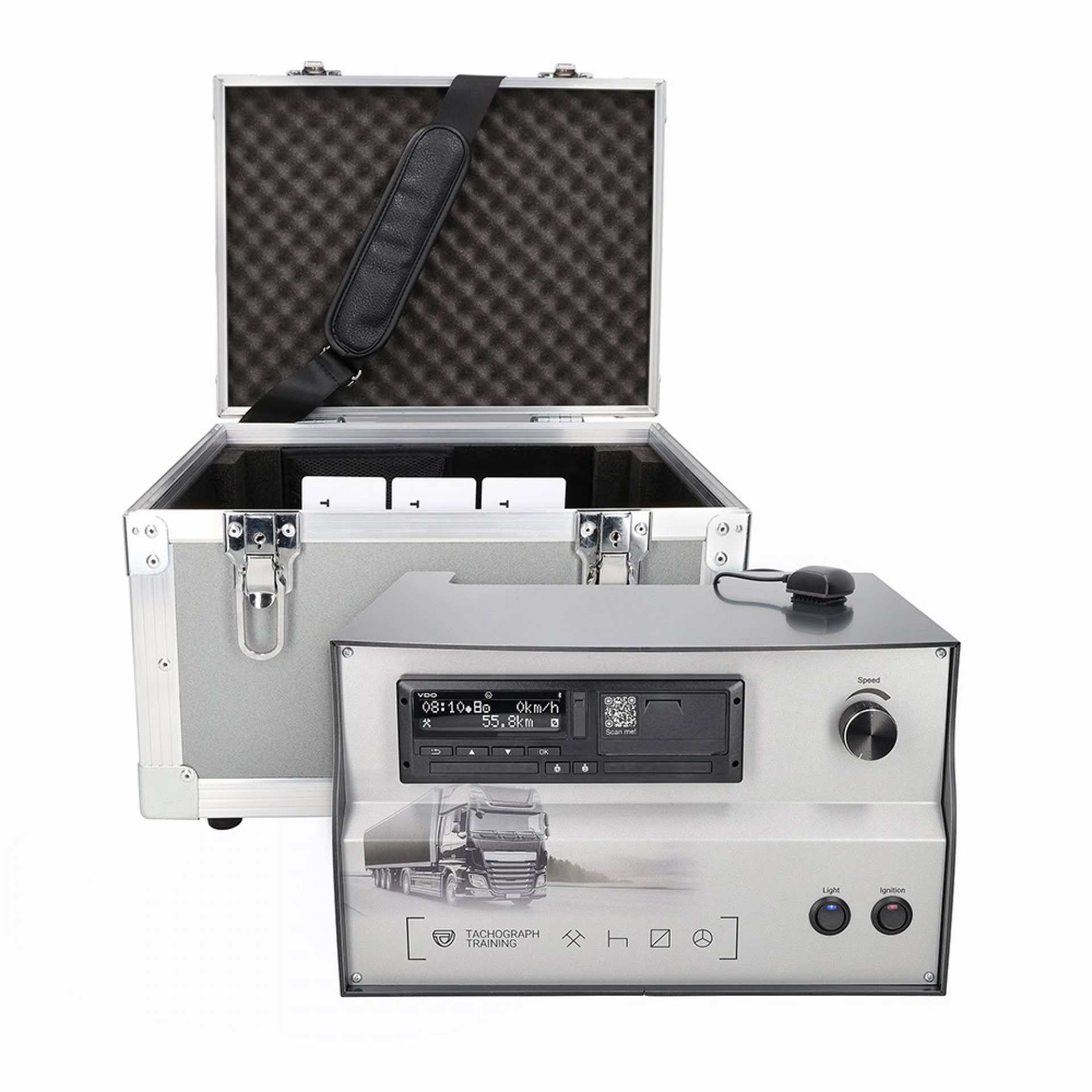

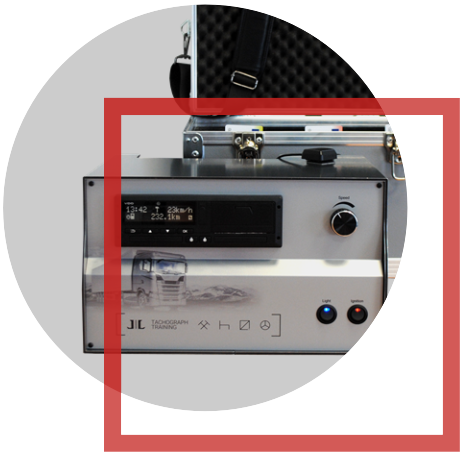

Tachograph training station





Tachograph training station can be considered for trainings on tachographs for the targeted audience such as professional drivers, workshop technicians and for a tachograph operation simulation in a vehicle.








Specification


  • Possibility for a quick vehicle unit replace with another tachograph like: different digital, SMART, 1324 or VR 2400
  • Allows to simulate the vehicles speed, ignition and headlights switch
  • Option for a power supply for external devices, e.g. a tachograph tester, with the use of external banana connectors

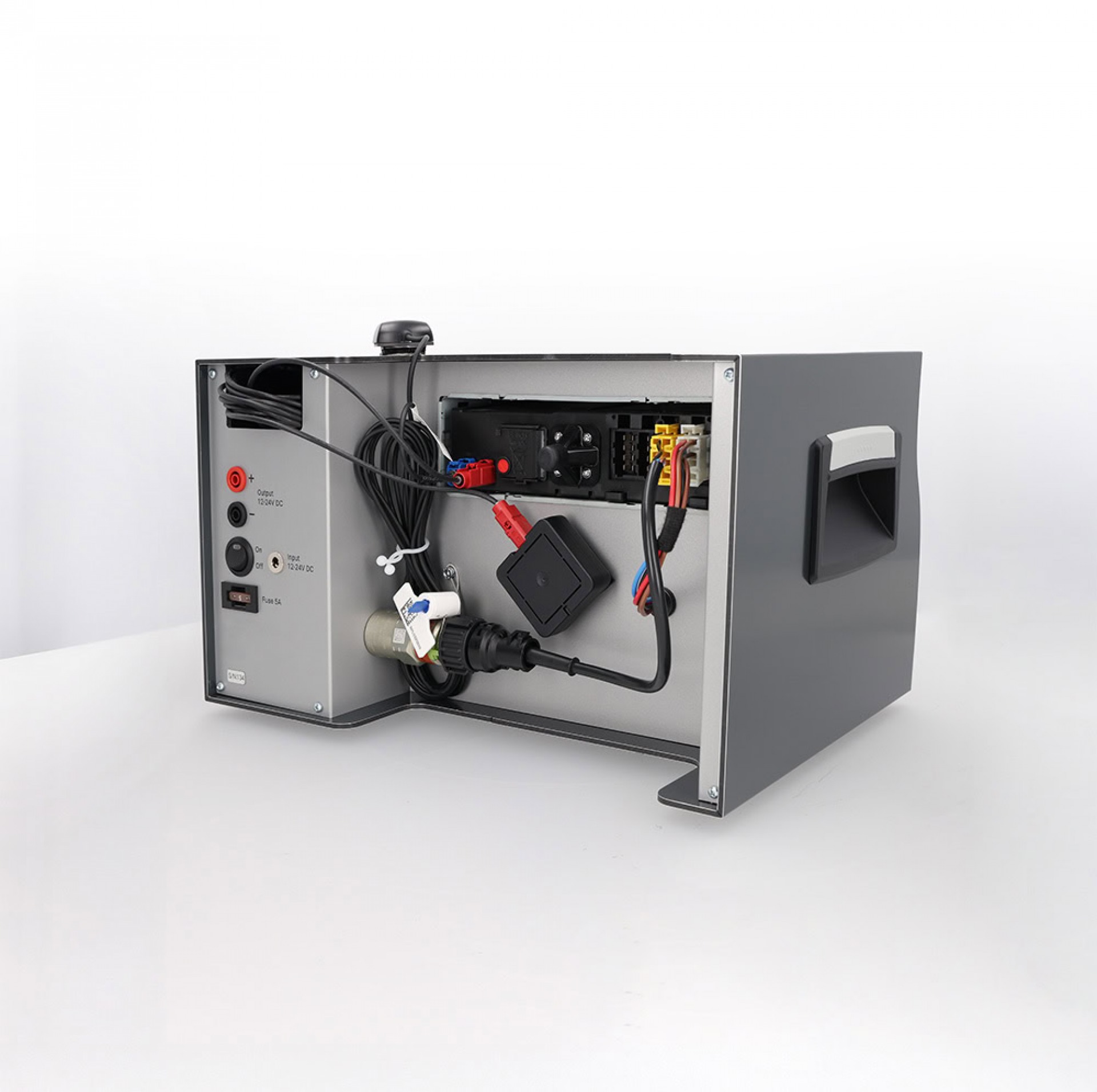

  • Easy access to all tachograph outputs and its motion sensor
  • Tailor made, custom logo individualization on the front print is possible
  • Its compact dimensions and durable suitcase with a stable but light construction allow easy transportation






Technical data


  • Power input: AC adaptor 230 V, 90 W
  • Power output: 12 V or 24 V, 4 mm banana connector
  • Dimensions: 35x24x21 cm
  • Weight: 3 kg, sole training station weight (including inner equipment, without tachograph)
  • Weight: 4 kg, sole transport case weight
